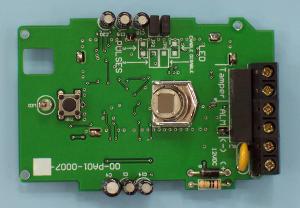

Passive Infrared Sensor (PIR) for installation into custom housing.

· This circuit board can be installed in your housing with your brand, and can provide high performance.

· PYROFLEX™** IR Detector. High level of immunity to false alarms.

· 10x – 100x more signal than conventional sensors.

· Less amplification is needed in the circuit, reducing false alarms.

· High immunity to RFI, shock, changes in temperature, white light, and power surges.

· Large sensor window (4.2 mm x 5.2 mm) for an advantageous position of the detector elements.

· Special analog alarm processing
with HighBar™ false alarm rejection.

· Look down mirror, for detection in the creep zone immediately below the sensor.

· A wide operating temperature range of -10°C to +55°C.

· Tamper switch to detect intrusions into the housing.

· Easy installation with a 45 degree terminal block for easy wiring.

· Easy installation with a 45 degree terminal block for easy wiring.



To contact us:

Phone: 555-555-5555

Fax: 555-555-5555

E-mail: someone@example.comail: infraotica@infraotica.com

Specifications



Voltage                    8 to 14 VDC

Alarm Relay          Reed

Tamper Switch     Form A (NC) 50 mA @ 30 VDC

RF Immunity         30 V/m @ 10 to 1000 MHz

                                  10 V/m @ 1000 to 2000 MHz

Sensitivity             2 events, 2.5C or 3 events 3.0 C

Temperature         -10C to +55C

Dimensions           94 x 50 x 42  mm
