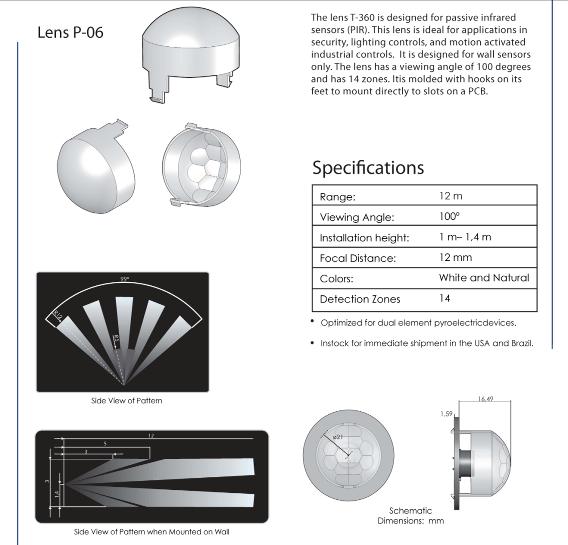

Lens for compact wall mount sensor. 100º viewing pattern.

Specifications



· Range:                               12 m

· Viewing angle:                  100º

· Installation height:             1.0 m– 1.4 m

· Focal distance:                 12 mm

· Colors:                               White and Natural

· Detection Zones:              14

· Optimized for dual element pyroelectric devices.

· In stock for immediate shipment in the USA and Brazil.

The lens T-360 is designed for passive infrared sensors (PIR). This lens is ideal for applications in security, lighting controls, and motion activated industrial controls.  It is designed for wallsensors only. The lens has a viewing angle of 100 degrees and has 14 zones. Itis molded with hooks on its feet to mount directly to slots on a PCB.

To contact us:

Phone: 555-555-5555

Fax: 555-555-5555

E-mail: someone@example.comail: infraotica@infraotica.com

Optical Engineering and Manufacturing

Price: $0.25, minimum order 1,000 pieces

Volume discounts available, please ask for quotation.

Top view of pattern.

Side view of pattern, when mounted on wall.
