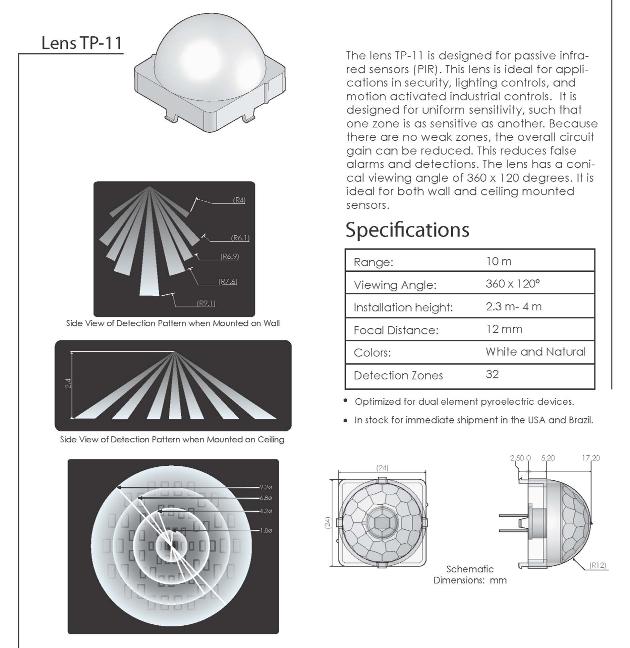

Lens for compact wall or ceiling mount sensor. 360º x 120º viewing pattern.

Specifications



· Range:                             10 m

· Viewing angle:               360 x 120º

· Installation height:         2.3 m– 4 m

· Focal distance:              12 mm

· Colors:                              White and Natural

· Detection Zones:           32

· Optimized for dual element pyroelectric devices.

· In stock for immediate shipment in the USA and Brazil.

Price: $0.25, minimum order 1,000 pieces

Volume discounts available, please ask for quotation.

The lens TP-11 is designed for passive infrared sensors (PIR). This lens is ideal for applications in security, lighting controls, and motion activated industrial controls.  It is designed for uniform sensitivity, such that one zone is as sensitive as another. Because there are no weak zones, the overall circuit gain can be reduced. This reduces false alarms and detections. The lens has a conical viewing angle of 360 x 120 degrees. It is ideal for both wall and ceiling mounted sensors.

To contact us:

Phone: 555-555-5555

Fax: 555-555-5555

E-mail: someone@example.comail: infraotica@infraotica.com

Optical Engineering and Manufacturing

Side view of detection pattern when mounted on ceiling

Plan view of detection pattern when mounted on wall
